QSCad Drainage

QSCad Drainage will bring about a revolution in the way you measure Drainage!

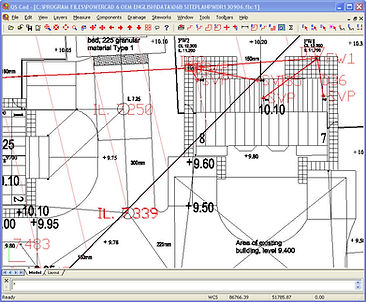

Simply enter the standard manhole and pipe run details for your project, drop the manholes onto the drawing, plot the pipe runs and let the system do all the work for you.



QSCad Drainage will interpolate levels, calculate lengths and depths of pipe runs, and produce a traditional drainage schedule for both the Manholes and the Pipes.



But that is not all QSCad Drainage can do... it can also take the Manhole or Pipe Run Schedule and create a draft SMM7/NRM2/CESMM3/Highways Bill of Quantities and
pre code it ready for incorporation into Masterbill Elite or Excel.



Key Features



  • Easy to use: simply plot on manholes and pipes

  • Full drainage measurement facilities for Manholes, Inspection Chambers, Soakaways, Petrol Interceptors and Pipe Runs

  • Automatically interpolates levels for drain runs from Manhole and Fittings invert levels

  • Generates full drainage schedules and SMM/NRM/CESMM/Highways measurement

  • Reduces measurement time from days to hours


Click here to see a full Drainage Feature Checklist
